Ninf Interface Description Language

IDL File and Stub Generator

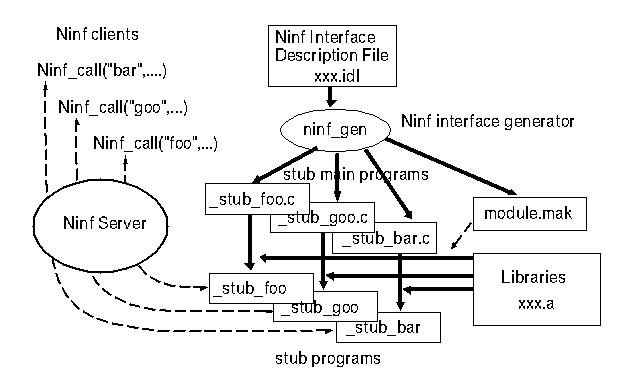

To register numerical libraries you have to provide interface informations of the libraries. A Interface Description Language called 'Ninf IDL' is used for this purpose. Stub generator interprets a Ninf IDL file, and generates stub main routine files and a makefile. The figure below gives overview of stub generator behavior.

IDL File

You should provide following informations in IDL File.

Module name.
Interface Information(marshaling information) of each library routine.
Information to make whole Module.

The stub generator generate stub main routine which bridges each numerical library and our ninf runtime routines, and Makefile to compile the whole program. The generator is named 'ninf_gen'. You should provide the idl filename as the first argument.

         ninf_gen file.idl

This will make a Makefile named 'module.mak' and some '_stub_XXX.c' files. To make Ninf Executables, you should type:

        make -f module.mak

It will make some '_stub_XXX' files.

Ninf IDL Syntax

The following statements can be used in the NINF IDL files.

Module module_name ;
This statement specifies the module name. Ninf_gen will generate a Makefile named .mak.
CompileOptions " .... ";
This statement specifies some definition whish should be used in the resulting makefile.
FortranFormat "....";
Some fortran compiler have strange convention for generating labels from function name. For example a compiler compiles function named 'FFT' into '_FFT_'. Our stub routine uses C, not FORTRAN, so we have to handle these conventions in someway.
This statement provides translation format. It is similar to the printf format string. You can use following two special characters in the string.
- %s : original function name
- %l : capitalized original function name
We can cope with almost all strange conventions using these two.
For example, consider to put under score before and after the function name.
```
FortranFormat "_%s_";
```
With this statement,
```
Calls "Fortran" FFT(n,x,y);
```
will generate function call in C, _FFT_(n, x, y) .
Library "....";
This statement specifies object files and libraries for each functions.
Globals { ... C descriptions ... }
This statement declares global variables shared by all routines.
Define ninf-name ( paramter1, paramter2, .... )
["description" ]
[Required "files-or-libs"]
{ { C descriptions } | Calls lang-spec function-name ( arg1,arg2, ... );}
This statement declares function interface and libraries needed by the function.
For 'lang-spec', you specify the language you implement your numerical library. Currently, you can use 'fortran' of 'C'. 'C' is default. Using this information, the stub generator changes function call sequence. For fortran libraries, the format string specified in FortranFormat statement will be used.
Each parameter must follow the following syntax.
[mode-spec] [type-spec] param-name [ [ dimension [ : range] ]]+ For 'type-spec', you specify data type for the parameter. You can use, float, double, signed/unsigned char, short, int, long, longlong. NOTE: sizes of these data-types do not depend on platforms. The sizes is specified by XDR, char 1 byte, short 2 byte, int 4 byte, long 4byte, longlong 8byte, float 4byte, double 8byte .
For 'mode-spec', you specify input/output mode: IN, OUT, INOUT, WORK. 'IN' means that the parameter will be transferred from client to server. 'OUT' means the opposite. 'INOUT' means that the parameter will be transferred from client to server firstly, and after the calculation, it will go back to the client. Parameter marked as 'WORK' will not be transferred. Specified memory area will be just allocated on the server side. You can not use 'OUT' for scalar types.
For arrays, you can specify, size, upper-limit, lower-limit, stride. These can be omitted, except for size. For these values, you can use some expressions.
Expression can include constants, other IN-moded scalar parameter in the function definition, and some operators. We provide just 5 operators: +,-,*,/,%. Priority among these operators is same as ANSI C. You can also use parentheses in expressions.

Ninf IDL syntax

/* program toplevel */
program:  /* empty */
      | declaration_list
    ;

declaration_list:
      declaration
    | declaration_list declaration
    ;

declaration:
      ``Module'' IDENTIFIER ';'
    | ``FortranFormat'' STRING ';'
    | ``CompileOptions'' STRING ';'
    | ``Globals'' globals_body
    | ``Define'' interface_definition opt_string required interface_body
    ;

interface_definition:
        IDENTIFIER '(' parameter_list ')'
    ;

parameter_list:
       parameter
    | parameter_list ',' parameter
    ;

parameter:
       decl_specifier declarator
    ;

decl_specifier:
    type_specifier
    | MODE
    | MODE type_specifier
    | type_specifier MODE
    | type_specifier MODE type_specifier
    ;

type_specifier:
      TYPE
    | TYPE TYPE
    | TYPE TYPE TYPE    /* ex. unsigned long int */
    ;

declarator:
      IDENTIFIER
    | '(' declarator ')'
    | declarator '['expr_or_null ']'
    | declarator '['expr ':' range_exprs ']'
    | '*' declarator
    ;

range_exprs:
       expr     /* upper limit */
     | expr ',' expr    /* lower limit and upper limit */
     | expr ',' expr ',' expr /* lower, upper and step */

opt_string:
    /* empty */
    | STRING
    ;

language_spec:
    /* empty */
    | ``fortran''
    | ``C''
    ;

required:
    /* empty */
    | ``Required'' STRING
    ;

interface_body:
    '{' /* C statements */ '}'
    | ``Calls'' opt_string IDENTIFIER '(' id_list ')' ';'
    ;

globals_body:
    '{'/* C statements */ '}'
    ;

id_list: IDENTIFIER
    | id_list ',' IDENTIFIER
    ;

/* index description */
expr_or_null:
       expr
    | /* null */
    ;

expr:
      unary_expr
    | expr '/' expr
    | expr '%' expr
    | expr '+' expr
    | expr '-' expr
    | expr '*' expr
    ;

unary_expr:
      primary_expr
    | '*' expr
    | '-' expr
    ;

primary_expr:
     primary_expr '[' expr ']'
    | IDENTIFIER
    | CONSTANT
    | '('  expr  ')'
    ;

/* TYPE = int, unsigned, char, short, long, long float, double */
/* MODE = mode_in, mode_out, mode_inout, mode_work, IN, OUT, INOUT, WORK*/
/* IDENTIFIER = name */
/* CONSTANT = integer literals 、floating point literals */
/* STRING = "..." */

IDL Sample

sample.idl:

Module sample;
Library "-lm";

Globals { int x,y,z; }

Define sin(IN double d, OUT double result[])
" This is test ..."
{
    double sin();
    *result = sin(d);
}

Define mmul(long mode_in int n, mode_in double A[n][n],
    mode_in double B[n][n],
    mode_out double C[n][n])
Required "sample.o"
Calls "C" mmul(n,A,B,C);

Define mmul2(long mode_in int n, mode_in double A[n*n+1-1],
        mode_in double B[n*n+2-3+1],
        mode_out double C[n*n])
Required "sample.o"
Calls "C" mmul(n,A,B,C);


Define FFT(IN int n,IN int m, OUT float x[n][m], float INOUT y[m][n])
Required "sample.o"
Calls "Fortran" FFT(n,x,y);

stub generator output

sample.mak:

# This file 'sample.mak' was created by ninf_gen. Don't edit

# CompileOptions:

# stub sources
NINF_STUB_SRC = _stub_sin.c  _stub_mmul.c  _stub_FFT.c

# stub programs
NINF_STUB_PROGRAM = _stub_sin _stub_mmul _stub_FFT

all: $(NINF_STUB_PROGRAM)

_stub_sin:
    $(CC) $(LDFLAGS) -o _stub_sin _stub_sin.c ninf_stub_lib.a  -lm

_stub_mmul:
    $(CC) $(LDFLAGS) -o _stub_mmul _stub_mmul.c ninf_stub_lib.a sample.o -lm

_stub_mmul2:
    $(CC) $(LDFLAGS) -o _stub_mmul2 _stub_mmul2.c ninf_stub_lib.a sample.o -lm

_stub_FFT:
    $(CC) $(LDFLAGS) -o _stub_FFT _stub_FFT.c ninf_stub_lib.a sample.o -lm


clean:
    rm $(NINF_STUB_PROGRAM)

# END OF Makefile

_stub_mmul2.c:

/* _stub_mmul2.c : generated by ./ninf_gen, don't edit. */
#include "ninf_stub.h"

NINF_STUB_INFO ninf_stub_info = {
0,0,0,  "sample","mmul2",4,
{
        { 5, 1, 0,},
        { 13, 1, 1,{
                { 3, 2,
                        {
                          {2,2,4,1,4,1,4,5,0,0,0,0,0,0,0,0,0,0,0,0,},
                          {0,0,3,1,1,1,2,0,0,0,0,0,0,0,0,0,0,0,0,0,}
                        },
                  0, 0,
                        {
                          {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,},
                          {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,}
                        },
                  0, 0,
                        {
                          {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,},
                          {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,}
                        },
                  0, 0,
                        {
                          {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,},
                          {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,}
                        },
                },
                }},
        { 13, 1, 1,{
                { 3, 1,
                        {
                          {2,2,4,1,4,1,4,1,4,5,0,0,0,0,0,0,0,0,0,0,},
                          {0,0,3,2,1,3,2,1,1,0,0,0,0,0,0,0,0,0,0,0,}
                        },
                  0, 0,
                        {
                          {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,},
                          {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,}
                        },
                  0, 0,
                        {
                          {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,},
                          {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,}
                        },
                  0, 0,
                        {
                          {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,},
                          {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,}
                        },
                },
                }},
        { 13, 2, 1,{
                { 3, 3,
                        {
                          {2,2,4,5,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,},
                          {0,0,3,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,}
                        },
                  0, 0,
                        {
                          {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,},
                          {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,}
                        },
                  0, 0,
                        {
                          {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,},
                          {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,}
                        },
                  0, 0,
                        {
                          {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,},
                          {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,}
                        },
                },
                }},
}
};

/* Globals */
 int x,y,z;

/* Stub Main program */
main(argc,argv){
        long n;
        double *A;
        double *B;
        double *C;

        Ninf_stub_INIT(argc,argv);
        while(Ninf_stub_REQ()){
                Ninf_stub_SET_ARG(&n,0);
                Ninf_stub_SET_ARG(&A,1);
                Ninf_stub_SET_ARG(&B,2);
                Ninf_stub_SET_ARG(&C,3);
                mmul(n,A,B,C);
                Ninf_stub_END();
        }
        Ninf_stub_EXIT();
}
 /* END OF Stub Main */
